FujiFilm W3 3D Stereo Movie Viewing With Cardboard

UPDATED with additions and corrections (2015/4/4, 2015/4/12 )

This post describes procedures I used to prepare a FujiFilm W3 camera 3D stereo movie for viewing with Google's Cardboard VR viewer on my Android Sony Xperia Z1S smart phone.

First download Stereo Movie Maker (SMM for Windows) from Muttyan's site:  http://stereo.jpn.org/eng/stvmkr/index.html
I use this program to convert and re-size a FujiFilm W3 AVI movie file to a side by side version for viewing with Cardboard.

Next I downloaded 32-bit ffdshow:  http://sourceforge.net/projects/ffdshow-tryout/  to provide Stereo Movie Maker with video codecs for reading and writing the movie file. If you do not, SMM gives an error about a missing MJPEG decoder. To configure I used information supplied by http://3dstereophoto.blogspot.com/2011/05/fujifilm-finepix-real-3d-w3.html  Make sure you run the VFW configuration program (View for Windows), not the video decoder configuration program, turning on libavdecoder for MJPEG.

Now open your video file using SMM:

Next you should align with the Adjust menu, Auto Alignment since the W3 cameras may be slightly misaligned. Also make any other adjustments you might want, such as under View, auto color adjustment, for example to fix the brightness.

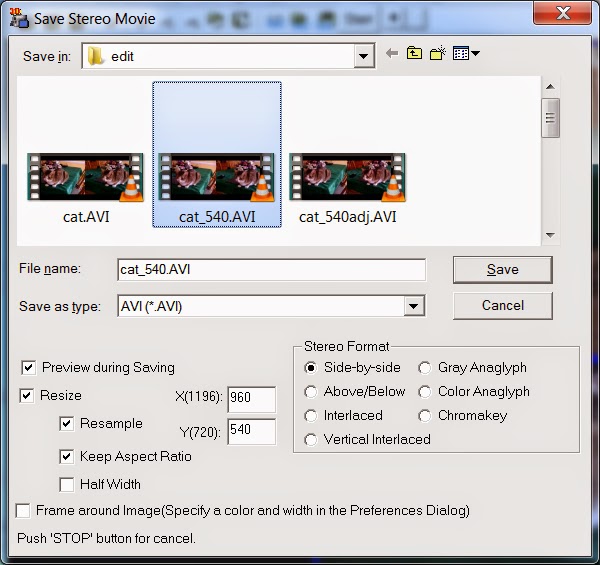

Save your movie in side by side format. I chose to re-size for the Cardboard viewer for my phone's display screen 1920x1080. The SMM re-size parameters are 960x540 (each eye). If I had a phone with larger display, like Samsung Galaxy S6 with its 2560x1440 display, I would not need to re-size to X 1280 and Y 720 since this is nearly the resolution of W3 movies out of the camera (1196x720).

Unfortunately my codec does not have a license for HD 2560x1440 size. Initially I used 960x540 for the re-size. I found I could crop to 4x3 aspect ratio and avoid the resize to approximate 960x720 per eye. With this aspect ratio my video looked best in the Cardboard viewer.

A video compression window will appear. If you leave uncompressed the file size is large and video is low quality. I chose GoPro since I own a GoPro and have their software installed on my computer. The quality is very good if you choose to configure. I tried several video compression formats, but only had success with GoPro-CineForm  and Cinepac codecs. You can get a GoPro codec from here.

After saving the movie file, I transferred it to my Z1S via USB cable. A dialog box appears recommending conversion, do this. The transfer program converts the file to MP4 format that the Sony phone can show. With MAGIX Movie Edit Pro 2014 video editor I am also able to convert from AVI to MP4 so as to not rely on my phone transfer to do this.

On the phone I used the VLC for Android media player app for viewing the movie. https://play.google.com/store/apps/details?id=org.videolan.vlc
I also tried Cardboard Theater, but found VLC much easier to use.

Celebrating PI Day

And Einstein's birthday and any other irrational activities you can think of!

Photographer's Dilemma

http://www.nytimes.com/2015/02/22/style/shutterbug-parents-and-overexposed-lives.html

"A photograph may distort or even push out our actual memory of an event, studies suggest."

As a photographer I am sometimes concerned if I shoot pictures at an event that I will miss out in experiencing the event. The above excellent article made clear some problems with shooting events and at same time trying to experience an event. Doing both observer and participant roles together are not always possible, I can't multitask.

3D Photo Viewing With Cardboard

Updated 2015/4/12, Major revision

Got Google's Cardboard, it's an inexpensive VR (virtual reality) viewer for smartphone displays. Bought mine from "Unofficial Cardboard" with the idea of seeing how my 3D stereoscopic photos look on my phone with the Cardboard viewer compared  to my 3D tablet (Inferno/Gadmei INF2890).

None of the Android stereo viewing or VR apps I tried worked as I would like with my photos. The cardboard lenses limit the viewing area on the phone since the headset is meant to move around to change the display with VR apps. I don't want to have to move my head around with the viewer just to see a stereo 3D slideshow. Of course for panoramic photos that is a great feature, but my photos are not panoramas.  With many photo apps, it was cumbersome to get my photos to be the right size for viewing in Cardboard. So instead I used an easy method to view my 3D photos in Cardboard without VR apps.

For my Sony Xperia Z1S phone (1920 W x 1080 H screen)  I used StereoPhotoMaker to resize side_by_side stereo photos to 1920x540 pixels (with black borders if necessary to match the display width of 1920 specifically for the Z1S). Each eye view has an aspect ratio of 16x9. In the Cardboard viewer I look at photos in full screen mode with an app like Full Screen Pic. Full screen viewing mode is a requirement. The result looked good with Cardboard, and actually much better than my 3D tablet. However I can see the pixels of the photos due to lens magnification.

With more experimentation I improved the viewing experience using side_by_side photos resize to 1920x720 pixels. Each eye view has an aspect ratio of 4x3. This turned out to be a better viewing experience with cardboard. The cardboard lenses prevent seeing the entire photo (on the edges), but with more pixels the images look better. Finally after yet more experimentation, I cropped the photo to 8x9 aspect ratio to get the best results. On the 1920x1080 phone this produced full screen images. Looks great if you can use this aspect ratio for your photo. Finally I used different lenses that do not limit my field of view in a homemade cardboard viewer. I may discuss this topic in another post.

Placing the main subject in the center of the photo helped too. This may detract from the art of composing photo subjects as would be done in 2D photos (such as with rule of Thirds).

I also experienced some eyestrain discomfort, but this may be due to how near my eyes are to the lenses in the cardboard frame, because when I back away the image is sharper.

Full Screen Pic has a slideshow mode that works well because it does not use or can turn off annoying transitions or zooms and it works in full screen.
